Introduction
High-voltage accelerated life test equipment is also known as high-voltage accelerated aging test machine.
The saturated high-pressure accelerated aging tester is widely used for the testing of sealing performance.
National defense, aerospace, auto parts, electronic parts, plastics, resins, magnet industry, circuits
Accelerated life tests for products such as boards, multi-layer circuit boards, integrated circuits, liquid crystal displays, magnets, and lighting products are used in the design phase of related products to quickly expose defects and
Weaknesses of the product. Test the wear resistance and airtightness of the product.

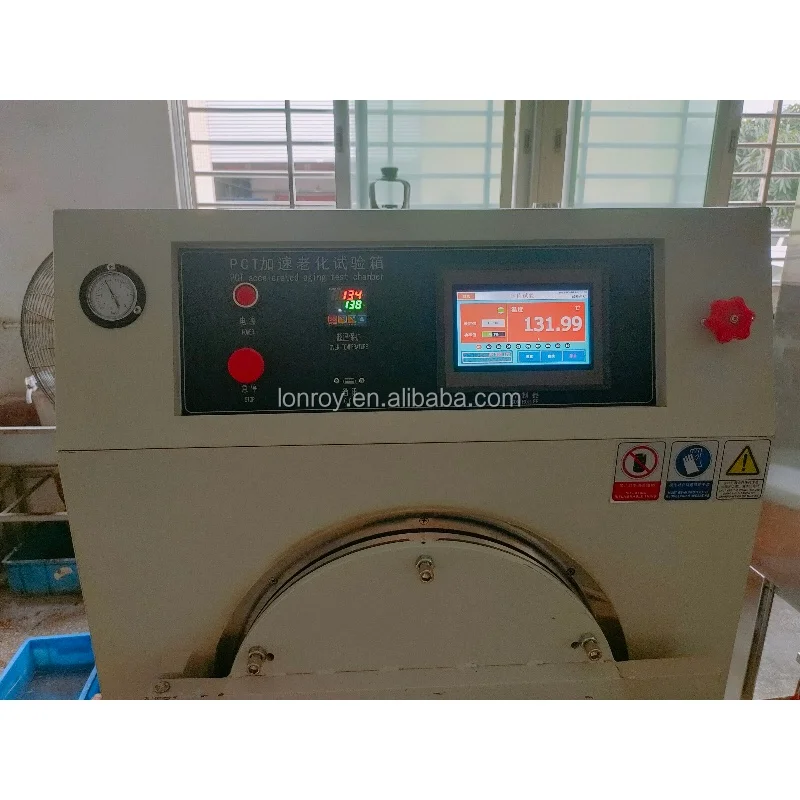

1. Control system:
a. The saturated steam temperature is controlled by a Japanese-made RKC microcomputer (using a PT-100 platinum temperature sensor).
b. The time controller is displayed by light-emitting diodes.
c. Use a pointer to indicate the pressure gauge.
2. Mechanical Structure:

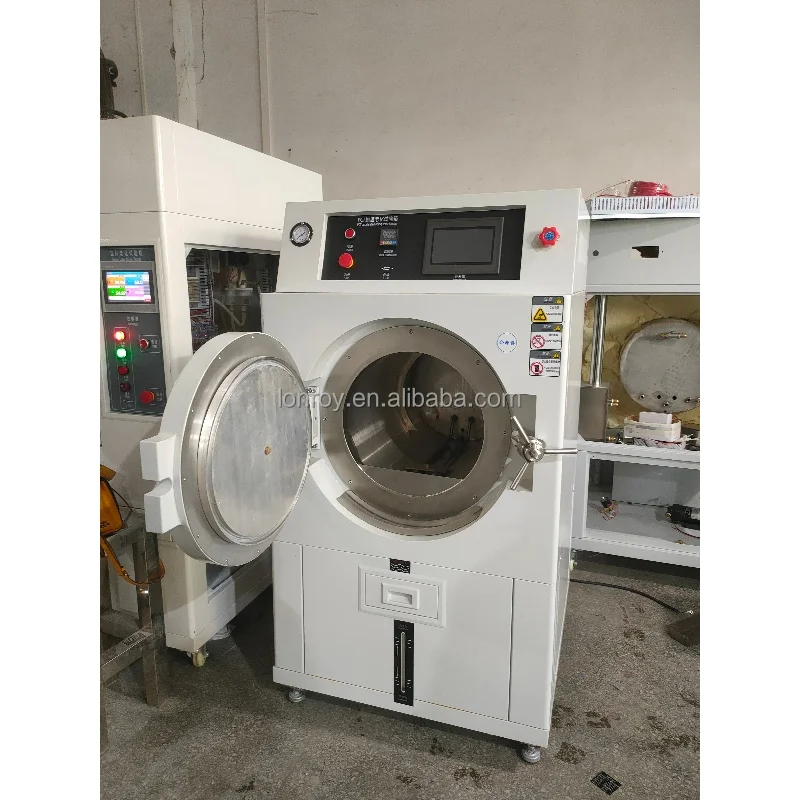

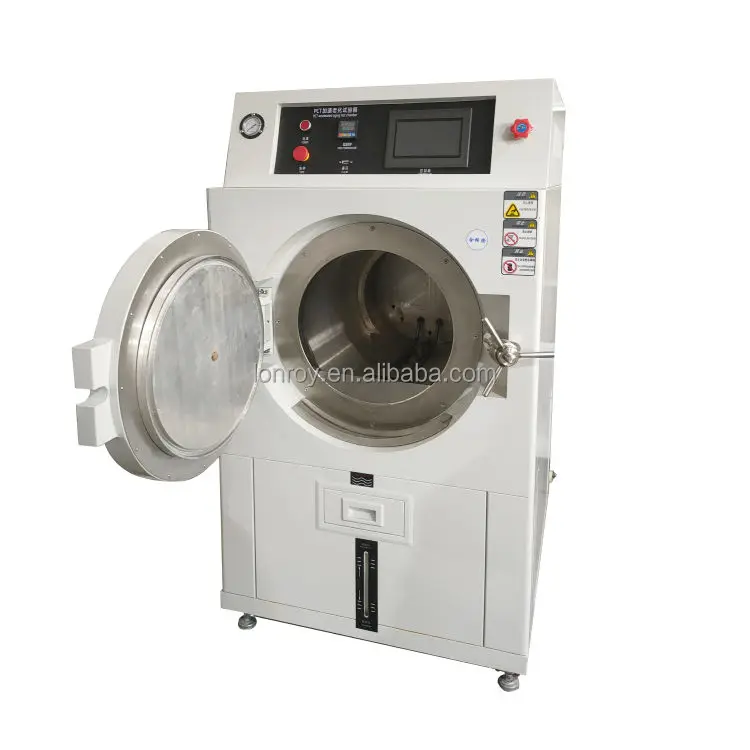

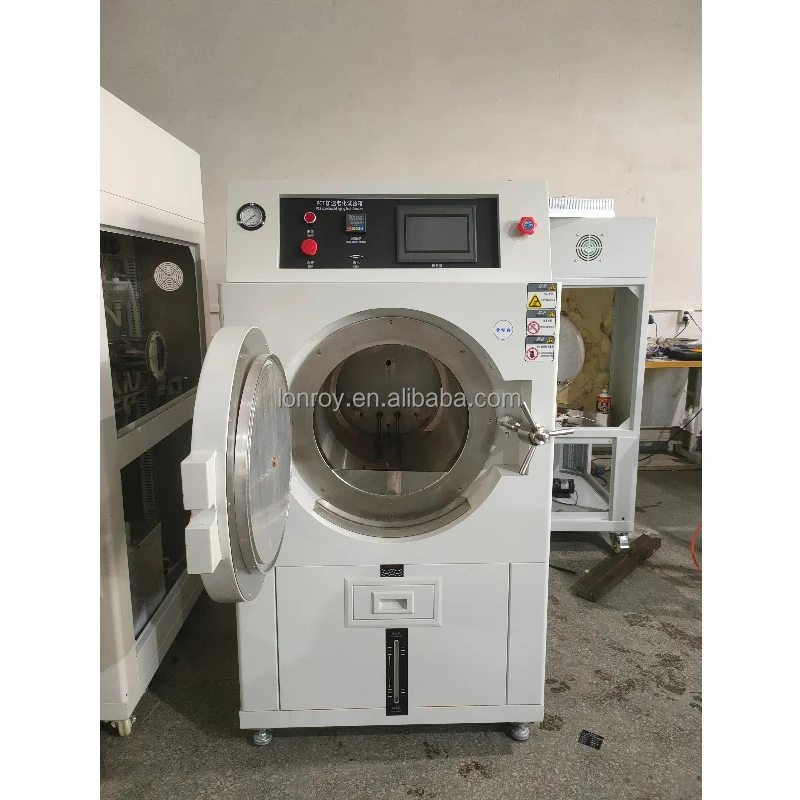

a. Circular inner box, made of stainless steel with a circular structure, complies with industrial safety container standards.
b. The patented packaging design enables the door and the box to be more closely integrated, which is completely different from the traditional squeezing type and can extend the packaging life.
c. Critical point limit mode with automatic safety protection, abnormal cause and fault indicator light display.
3. Safety Protection:
A. The imported high-temperature resistant sealed solenoid valve adopts a dual-loop structure to ensure no pressure leakage.
B. The entire machine is equipped with multiple safety protection devices such as overpressure protection, over-temperature protection, one-button pressure relief, and manual pressure relief, ensuring the user's safety and usage to the greatest extent.
C. Back pressure door locking device: When there is pressure inside the laboratory, the laboratory door cannot be opened.
4. Other attachments
4.1 One set of test frames
4.2 Sample Tray
5. Power Supply System:
5.1 The fluctuation of the system power supply shall not exceed ± 10.
5.2 Power Supply: Single-phase 220V 20A 50/60Hz
6. Environment and Facilities:
6.1 The allowable operating ambient temperature is 5 ℃ to 30 ℃.
6.2 Experimental water: Pure water or distilled water
Standard
GB/T 29309-2012, IEC 62108
IEC 62108 PCT High Voltage Accelerated Life Test Equipment High Pressure Accelerated Aging Laboratory Testing Chamber
